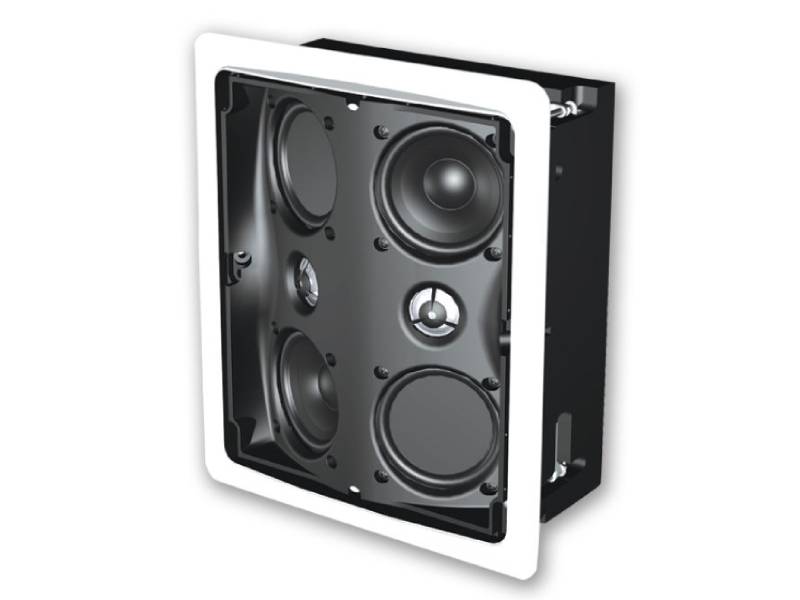

UIW RSS III
- Bipolar arrays evenly disperse sound effects over a broad area
- Dual 1" pure aluminum dome tweeters produce pristine highs
- High dynamic impact with a pair of 3.5" cast basket drivers and two 3.5" pressure-coupled Low Bass radiators
- Integrated dense wood enclosures provide easy installation and consistent high performance
In-Ceiling Or In-Wall, They’re Incredible
The Definitive Technology Architectural Speaker line delivers high performance sound while remaining practically invisible. Intended for use in custom home theaters of the highest quality, UIW RSS III speakers feature non-resonant medite cabinets, producing the tightest bass, clearest midrange and an ideal combination of direct and ambient sound. The result is uniquely immersive surround performance that completely envelops listeners in an expansive, 360-degree sound stage.
Key Features
Bipolar Surround Experience
Sound engulfs you anywhere in the room with dual 3-way full-range systems in each speaker–a total of 6 driver/radiators per unit.
Pure Aluminum
Smooth, high frequency response rings true from the pure aluminum dome tweeter set among high definition bass drivers with cast baskets.
Greater Degrees of Sound Control
For in-ceiling installations, the RSS III’s rotating 90-degree driver arrays give you the freedom to optimize performance in relation to your room and seating arrangement.
Non-Resonant Sealed Medite
Enclosed in dense wood medite cabinets that eliminate vibrations and buzzing, the UIW RSS III reveals natural, uncolored midrange and tight, detailed bass.
Simple Stealth Installation
With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RSS III is easily installed in both new and existing construction applications.
IN-WALL SPEAKER - EXTERNAL AMPLIFIER | |
---|---|
Recommended Amplifier Power Per Channel | 10 watts → 300 watts |
IN-WALL SPEAKER - CROSSOVER | |
A/V Receiver Crossover Settings | Small (120 Hz) |
AUDIO QUALITY | |
Max Sensitivity (1 watt @ 1 meter) | 92 dB |
IN-WALL SPEAKER - AUDIO QUALITY | |
Nominal Impedance Range | 8 ohms → 4 ohms |
Total Frequency Response | 40 Hz → 30,000 Hz |
IN-WALL SPEAKER - INPUTS | |
Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded |
Audio Inputs | - |
IN-WALL SPEAKER - IN-CEILING MOUNT | |
Dimensions | 9.88" (25.1 cm) h x 8.31" (21.11 cm) w |
Shape | Rectangle |
IN-WALL SPEAKER - IN-WALL MOUNT | |
Dimensions | 9.88" (25.1 cm) h x 8.31" (21.11 cm) w |
Shape | Rectangle |
IN-WALL SPEAKER | |
Grille Dimensions | 11" (27.94 cm) h x 9.44" (23.98 cm) w |
Driver Complement | (2) 1" (2.54 cm) d (Round) - Tweeter, (2) 3.5" (8.89 cm) d (Round) - Mid/Woofer, (2) 3.5" (8.89 cm) d (Round) - Bass Radiator |
Qty Included | 1 |
SHIPPING CARTONS | |
Carton 1 | 13.5" (34.29 cm) h x 13.5" (34.29 cm) w x 7.25" (18.42 cm) d - 9 lbs (4.08 kg) |
Warranty | |
Drivers Warranty | 5 years |
Cabinet Warranty | 5 years |
Accessories | |
Included Accessories | (1) Wall Mounting Template, (1) Paint Mask, (1) Paintable Grille, (1) Self Adhering Foam Gasket |
OVERALL | |
Total Pieces | 1 |
